Air Valves
An air valve is used to automatically release trapped air and admit air into pipelines to ensure smooth and efficient flow.
IS 14845 | AWWA C512
Material of Construction: CI | DI | CS | GM | SS
End Connections: Screwed | Flanged End
Type: Single Acting | Double Acting Kinetic Type Isolating | Single Chamber Triple Function Tamperproof Air Valve
Pressure Rating: ASA 125# | 150# | 300# PN 1.0 | PN 1.6 | PN 2.0 | PN 2.5 | PN 3.0 | PN 3.5 | PN 4.0
Size Range: 15mm to 350mm
Air Cushion Valve
An air cushion valve prevents water hammer by absorbing pressure surges in pumping systems.
AWWA M 51
Material of Construction: CI | DI | SS | MS | SG IRON
End Connections: Flanged End
Operation: Automatic
Float MOC: Wood (Rubber Coated) / S.S.
Pressure Rating: PN 1.0 | PN 1.6 | PN 2.5 | PN 4.0
Size Range: 100mm to 300mm
Butterfly Valve
A butterfly valve uses a rotating disc to regulate or isolate flow within a pipeline.
API 609 | BS-5155 | BS EN 593 | AWWA C504 | IS 13095
Material of Construction: CI | DI | CS | GM | SS
Seat & Seals: Nitrile | Neoprene | PTFE | Viton | Hypalon | Silicon
End Connections: Wafer Type | Double Flanged | Lug Type
Pressure Rating: ASA 125# | 150# PN 1.0 | PN 1.6 | PN 2.0 | PN 2.5
Type: Centric Disc Design | Offset Disc Design Triple Offset Disc Design | High Performance
Operation: Lever | Gear | Electrical Actuator | Pneumatic Rotary Actuator
Size Range: 40mm to 2000mm
Gate Valve
A gate valve controls fluid flow by lifting or lowering a gate, providing full flow or complete shut-off.
API 600 | BS : 1414
Material of Construction: CS | SS | AS | WCB | LCB
End Connections: Screwed to BSP | BSPT | NPT Socket Weld | Butt Weld Ends Flanged Ends | Ring Type Joints (RTJ)
Pressure Rating: ASA 125# | 150# | 300#
Operation: Manual | Gear and Electrical Actuator
Size Range: 25mm to 600mm
Sluice Valve
A sluice valve is a flow control device used to start or stop fluid flow by raising or lowering a sliding gate.
IS 14846 | BS : 5150 | BS : 5163
Material of Construction: CI | DI | CS | GM | SS
End Connections: Flanged Ends
Pressure Rating: PN 0.6 | PN 1.0 | PN 1.6 | PN 2.0 | PN 2.5 | PN 3.0 | PN 3.5 | PN 4.0
Operation: Manual | Gear and Electrical Actuator
Type: Inside Screw (Non Rising Spindle) for Sluice Outside Screw (Rising Spindle) for Gate
Size Range: 25mm to 1500mm
Non Return Valve / Check Valve (Swing / Reflux Type)
A swing check valve allows flow in one direction and prevents reverse flow using a hinged disc.
BS 1868 | IS 5312 | BS 5153
Material of Construction: CI | DI | CS | SS | AS | LCB
End Connections: Flanged End | Buttweld End
Pressure Rating: 125# | 150# | 300# PN 1.0 | PN 1.6 | PN 2.0 | PN 2.5 | PN 4.0
Size Range: 50mm to 1200mm
Dual Plate Check Valve
A dual plate check valve uses two spring-loaded plates to allow forward flow and prevent backflow efficiently.
API 594
End Connections: Flanged End | Wafer Type
Pressure Rating: PN 1.0 | PN 1.6 | PN 2.5 | PN 4.0 ASA 150# | 300#
Size Range: 50mm to 2000mm
Non-Slam Disc Check Valve
A non-slam check valve prevents water hammer by closing quickly before reverse flow occurs.
BS 7438
Pressure Rating: PN 1.0 | PN 1.6
Size Range: 15mm to 200mm
Wafer Check Valve
A wafer check valve prevents backflow by allowing fluid to pass in one direction within a compact wafer-type body.
API 6D
Pressure Rating: PN 1.0 | PN 1.6
Size Range: 25mm to 600mm
Ball Valve
A ball valve is a flow control device which uses a hollow, perforated, and rotating ball to control fluid flow.
BS-5351 | BS-5159
Material of Construction: CI | CS | SS | FSI | CF8 | CF8M
Seat & Seals: PTFE | Reinforced PTFE Graphoil | Graphite
End Connections: Screwed to BSPT | NPT | Socket Weld Butt Weld with extended Nipple Flanged Ends | Butt Weld Ends
Pressure Rating: ASA 150# | 300# | 600# | 800#
Type: Single Pc | Two Pc | Three Pc | 3 Way | 4 Way
Operation: Lever | Gear | Electrical Actuator Pneumatic Rotary Actuator
Size Range: 6mm to 200mm
Globe Valve
A globe valve regulates flow using a movable disc and seat arrangement for precise throttling control.
BS-1873 | ND-16 | ND-40
Material of Construction: CI | DI | CS | GM | SS | AS
End Connections: Screwed to BSP | BSPT | NPT Socket Weld | Butt Weld Ends Flanged Ends | Ring Type Joints (RTJ)
Pressure Rating: ASA 125# | 150# | 300# PN 1.0 | PN 1.6
Operation: Manual | Gear and Electrical Actuator
Size Range: 15mm to 300mm
Plug Valve
A plug valve controls flow by rotating a cylindrical or tapered plug with a passage through it.
BS-5158 | BS-5353
Material of Construction: CI | DI | CS | SS
Type: PTFE Sleeved | Lubricated | Non-Lubricated
End Connections: Screwed | Flanged | Buttweld
Pressure Rating: ASA 125# | 150# PN 1.0 | PN 1.6
Size Range: 25mm to 200mm

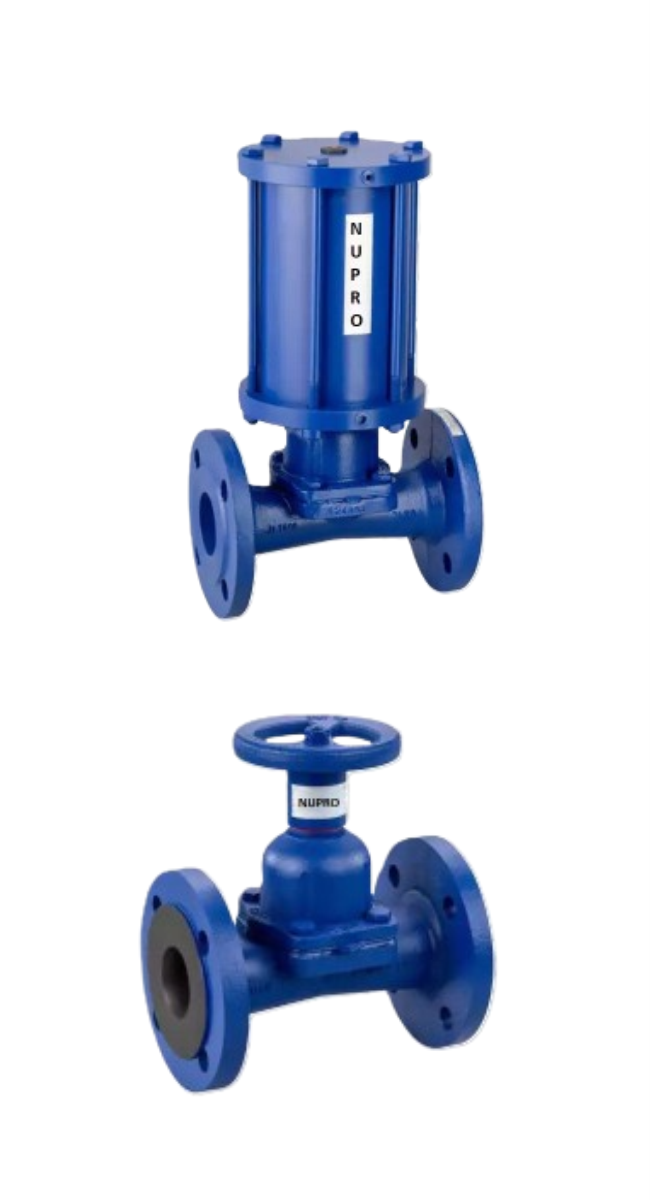

Diaphragm Valve
A diaphragm valve controls flow using a flexible diaphragm, ideal for corrosive or contaminated fluids.
BS-5156
Material of Construction: CI | CS | SS
Lining Options: Rubber Lined | Glass Lined | Unlined
End Connections: Screwed | Flanged End
Pressure Rating: PN 1.0 | PN 1.6 | ASA 150#
Size Range: 25mm to 200mm
Foot Valve
A foot valve is a non-return valve installed at the pump suction line to prevent backflow and maintain pump priming.
IS 4038
End Connections: Flanged End | Screwed
Type of Valves: Lift Disc Type | Swing Disc | Double Disc | Ball Type
Operation: Automatic
Size Range: 50mm NB to 400mm
Pressure Relief Valve
A pressure relief valve protects systems by automatically releasing excess pressure when limits are exceeded.
API 526
Material of Construction: CI | DI | CS | SS
End Connections: Screwed | Flanged End
Type: Ordinary Lift Type | High Lift Type | Full Lift Type
Pressure Rating: PN 1.0 | PN 1.6 | ASA 150#
Size Range: 25mm to 200mm
Sluice Gate
A sluice gate regulates or stops water flow in open channels by raising or lowering a gate structure.
IS 3042 | IS 13349
Material of Construction: CI | DI | SS | MS
Type: Open Channel Type | Wall Mounted Type | Trimble Mounted Type
Operation: Manual | Gear | Electrical Actuator
Size Range: 200mm to 1500mm (Any other size on request)
Strainer & Basket
A strainer & Basket removes debris and solid particles from fluids to protect downstream equipment.
Material of Construction: CI | CS | SS
End Connections: Flanged | Screwed End
Type: "Y" Type | "T" Type | Pot Type | Basket Type
Pressure Rating: PN 1.0 | PN 1.6 | ASA 150#
Size Range: 15mm to 200mm
Knife Edge Gate Valve / Pulp Valve
A knife gate valve is designed to cut through thick fluids, slurry, or pulp using a sharp-edged gate.
Material of Construction: Body: CI | DI | CS | SS
End Connections: Flanged End | Wafer Lug Type
Type: UNI-DIRECTIONAL | BI-DIRECTIONAL
Operation: Handwheel | Gear | Pneumatic Cylinder
Pressure Rating: PN 1.0 | PN 1.6 | ASA 125# | 150#
Size Range: 50mm to 600mm
Gun Metal & Bronze Valves
Gun metal and bronze valves are corrosion-resistant valves suitable for water and marine applications.
-
Gate Valve as per IS 778 CL-I
-
Globe Valve as per IS 778 CL-I
-
Horizontal Non Return Valve as per IS 778 CL-I
-
Steam Stop Valve
Forged Steel Valves (Gate / Globe / Check)
Forged steel valves are heavy-duty valves designed for high pressure and temperature applications.
API 602 | BS-5352
Material of Construction: ASTM A 105 | F304 | F304L | F316
End Connections: Socketweld | Screwed | Butt Weld | Flanged End
Type: Straight Pattern | "Y" Type Pattern
Pressure Rating: ASA 150# | 300# | 600# | 800#
Size Range: 15mm to 50mm

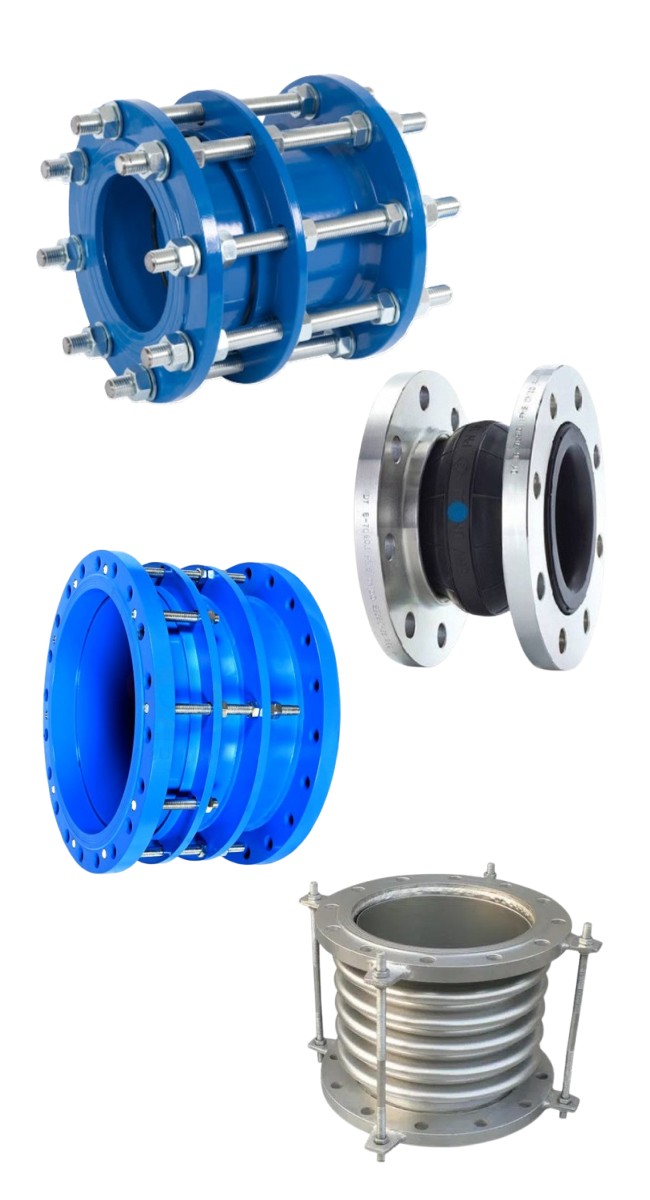

Dismantling Joint & Expansion Bellows
A dismantling joint and expansion bellows enable easy installation and maintenance of pipelines while absorbing thermal expansion, vibration, and minor misalignment.
As Per Manufacturer’s Design
Material of Construction: CI | DI | SS | MS | SG IRON
End Connections: Flanged End
Seal Ring: NBR | EPDM
Fasteners: Galvanised | SS
Pressure Rating: PN 1.0 | PN 1.6 | PN 2.0 | PN 2.5
Size Range: 50mm NB to 2,500mm
Flanges & Fittings
Flanges and fittings are used to connect, align, and support piping systems securely.
Material of Construction: CI | DI | MSI | A105 SS 304 | SS 316 | SS 304L | SS 316L
Rating: ASA 150# TO 800# | ND-16 | ND-40 BS 10 TABLE D | E | F | K | J
Type: SORF | Blind | WNRF Etc.
Size Range: 15mm to 1200mm
